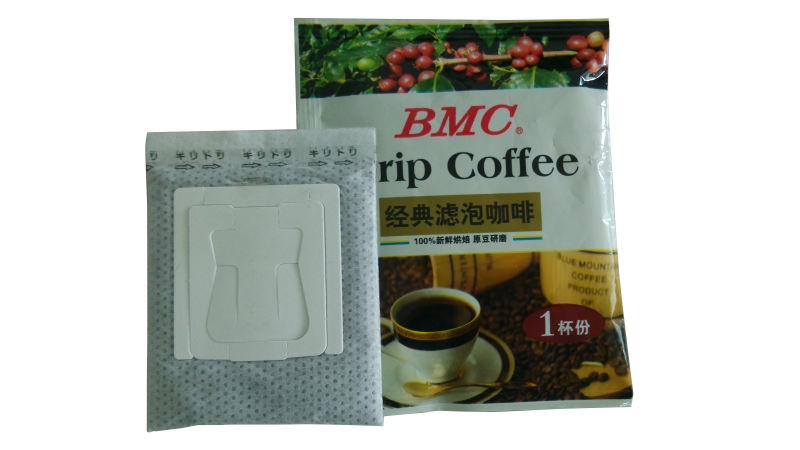

Adopt the special drip filter bag with three sides sealing,which can be directly hung against the cup edge to have a better brewing effect;moreover,the neat bag shape is high fashion in the overseas markets.
QP-190 Drip filter bag packing machine
Appliciations:
The machine is suitable for the powdered coffee and other small particles of material.
Features:
1.Adopt the special drip filter bag with three sides sealing,which can be directly hung against the cup edge to have a better brewing effect;moreover,the neat bag shape is high fashion in the overseas markets.
2.All the works of bag making,measuring,filling,sealing,cutting,counting,batch number printing and other functions can be done automatically.
3.The machine is controlled by a precise control system and provided with an Man-Machine interface(MMI),compact structure,convenient operation and adjustment and easy to maintemance.
4.The inner bag controller is driven by the servo motor for accurate positioning and stable bag length.As for the outer bag,the positioning is realized by the photoelectric switch for stepping film drawing and accurate and trim bag marking.
5.The drip inner bag made of non-woven fabric,guarantees convenient and hygienic brewing.The bag is sealed by the state of the art ultrasonic sealer for perfect sealing and neat appearance.
Technical parameters
|
Model |
QP-190 |
|
Sealing type |
|
|
Measuring range |
1-10g/bag(Other specification available upon request) |
|
Inner bag size |
L70*W90mm(Other specification available upon request) |
|
Outer bag size |
L120*W90mm(Other specification available upon request) |
|
Power supply |
220V/50/60HZ,Single-phase |
|
Total power |
3.7KW |
|
Total weight |
660KG |
